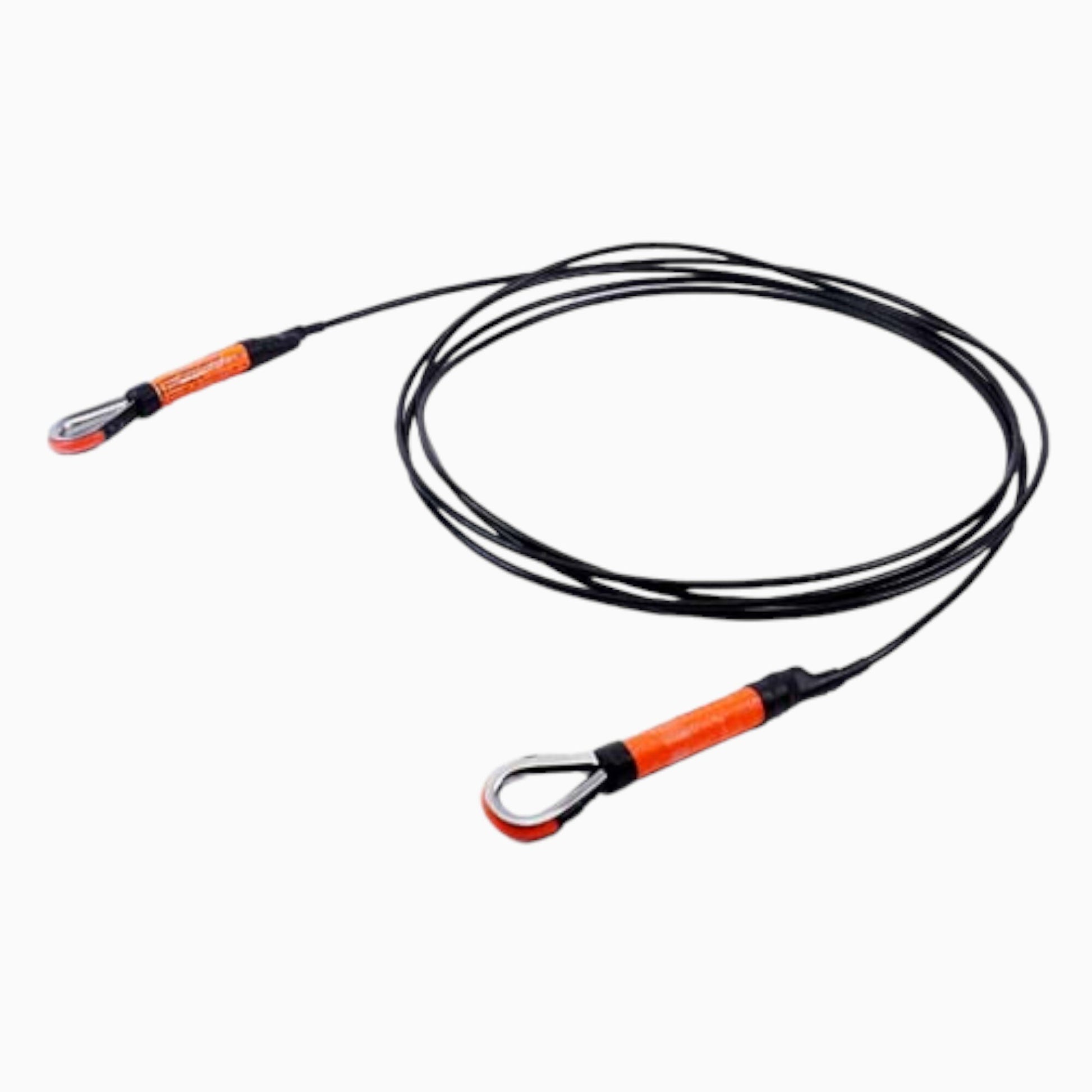

Barry D.E.W. Line® Insulating Tag Line

Insulating rope tool offering excellent dielectric properties and designed for performing live work on AC or DC energized apparatus.

Meets or exceeds the dry or wet electrical requirements of:

• IEC 62192:2009
• ASTM F1701-12

Arc-Flash rated

• Resistant to 40 cal/cm² (category 4)

Features

• Unique insulating properties
• Cleanable and easy to maintain and test
• Exceptionally low leakage current, whether dry or wet
• Protection from high fault current
• High strength
• Low elongation
• Lightweight and low volume
• Fully sealed and hydrophobic
• Smooth surface
• High abrasion resistance
• Easy to deploy
• Excellent resistance to UV
• High visibility sealed termination at each end

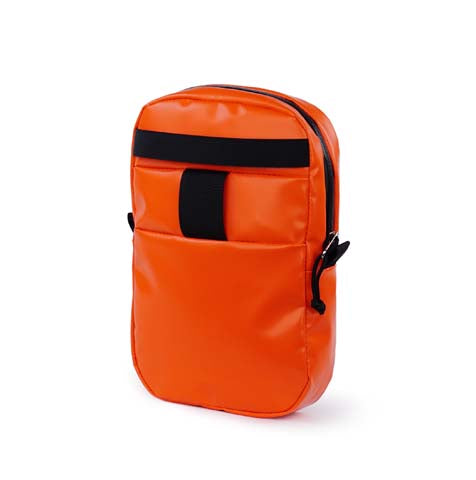

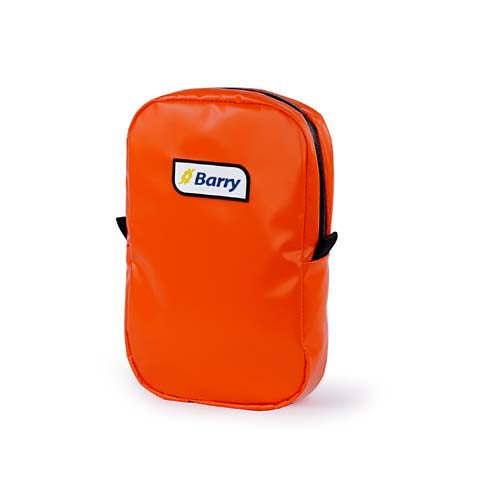

• Comes with transport bag

SPECIFICATIONS

• Working Load Limit: 200 lb (90 kg)
• Diameter: 1/4” (6 mm)
• Terminations: Stainless steel thimble at each end
• Colour: Black with bright orange terminations
• Weight: 0.78 lb (0.35 kg) for 20’ length
• Standard Lengths: 20’ (6.1 m), 30’ (9.1 m), 40’ (12.2 m)

Note: Available in other lengths. Contact Barry for more information.
