Barry D.E.W. Line® Insulating Rope Link

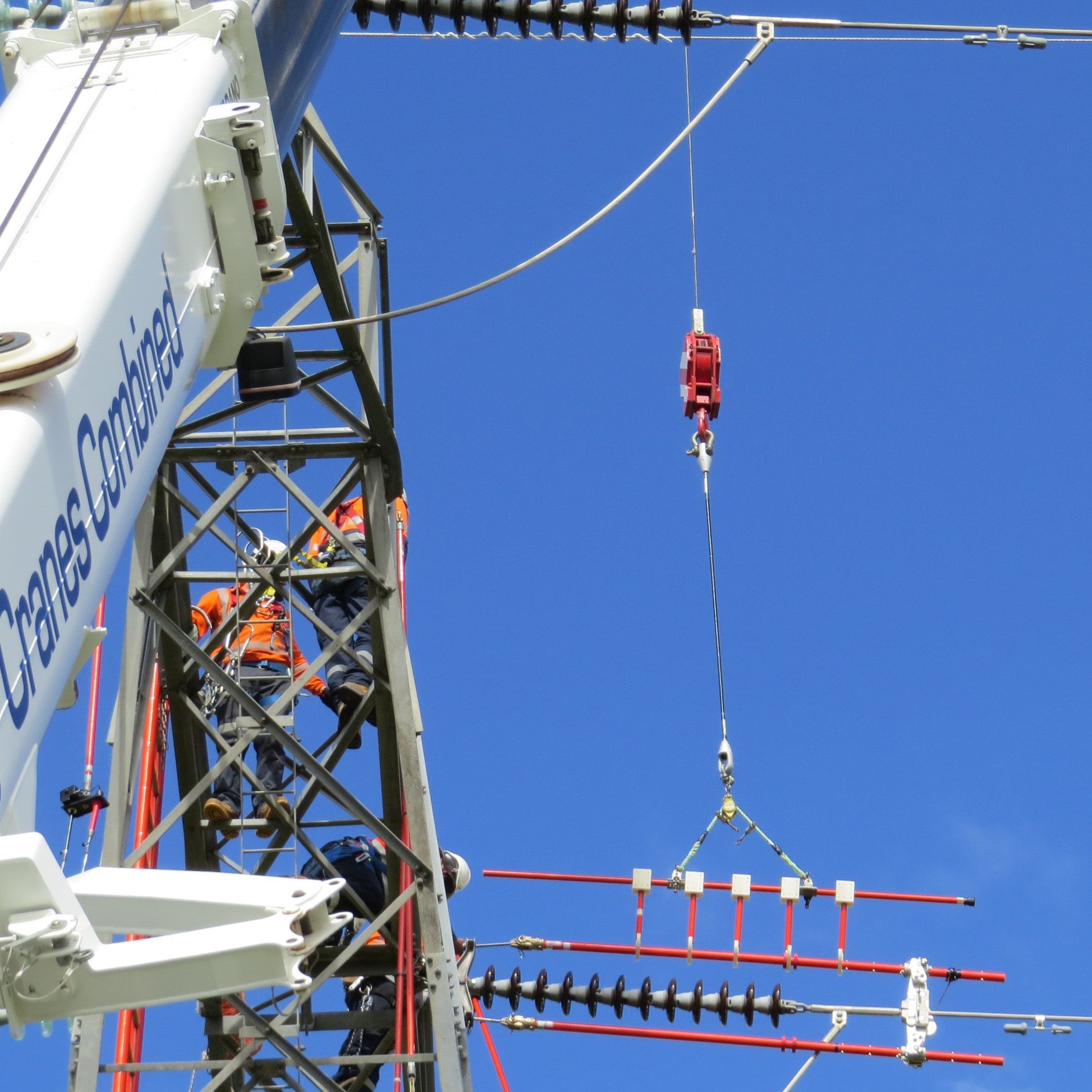

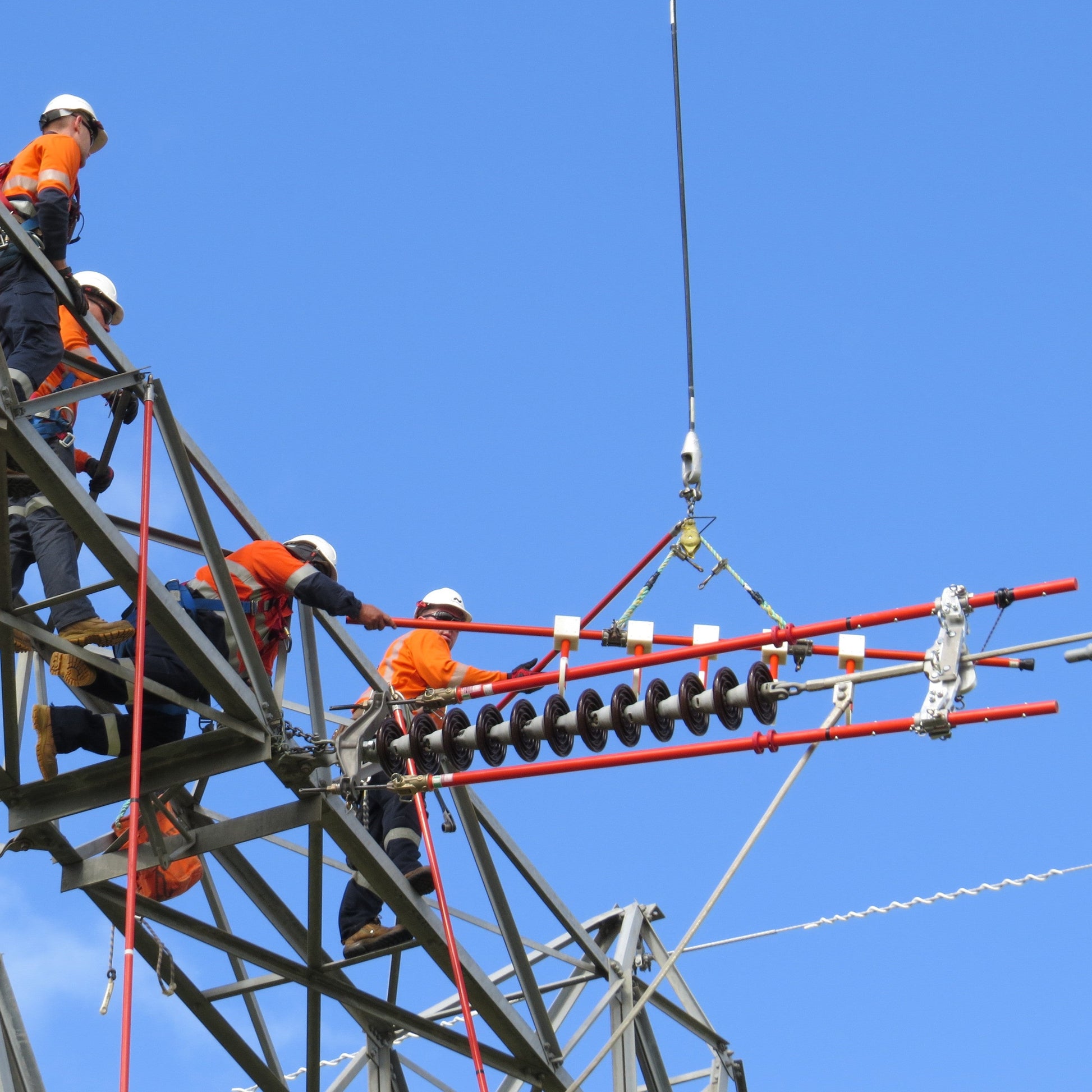

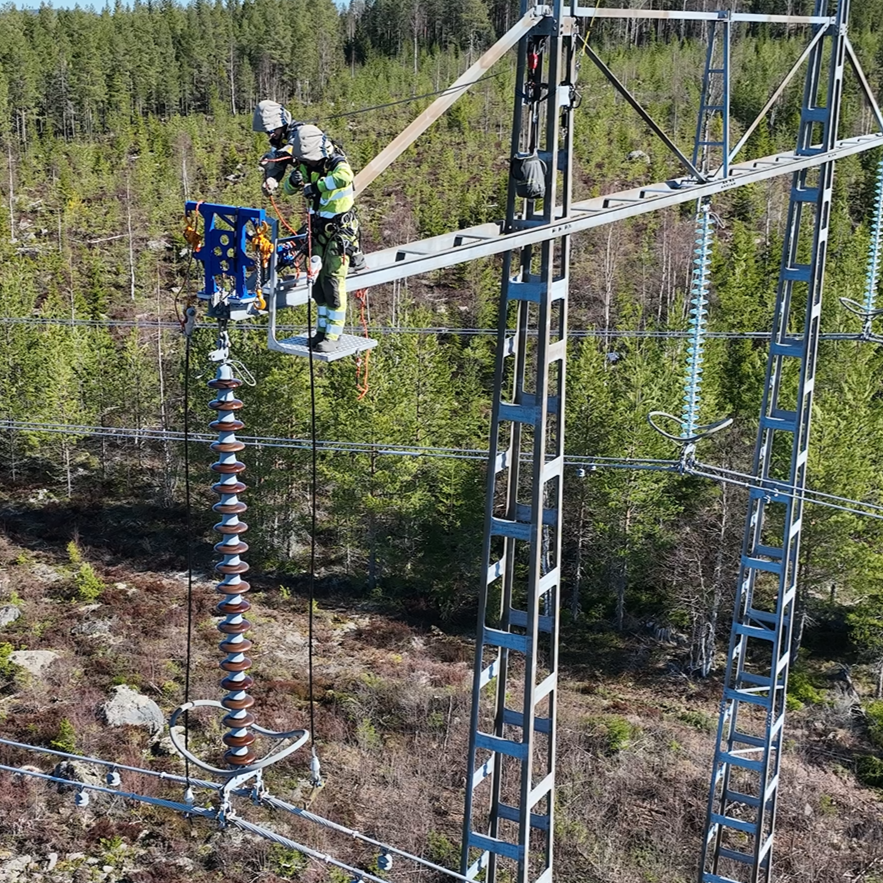

Insulating rope tool which may serve as a replacement for FRP strain link sticks during temporary installations in energized fields and high voltage systems (AC or DC).

Meets or exceeds the dry or wet electrical requirements of :

• IEC 62192:2009
• ASTM F1701-12

Arc-Flash rated

• Resistant to 40 cal/cm² (category 4)

Features

• Unique insulating properties
• Cleanable and easy to maintain and test
• Exceptionally low leakage current, whether dry or wet
• Protection from high fault current
• High strength
• Low elongation
• Lightweight and low volume
• Fully sealed and hydrophobic
• Smooth surface
• High abrasion resistance
• Easy to deploy
• Excellent resistance to UV
• Sealed termination at each end, with choice of closed or open spelter sockets

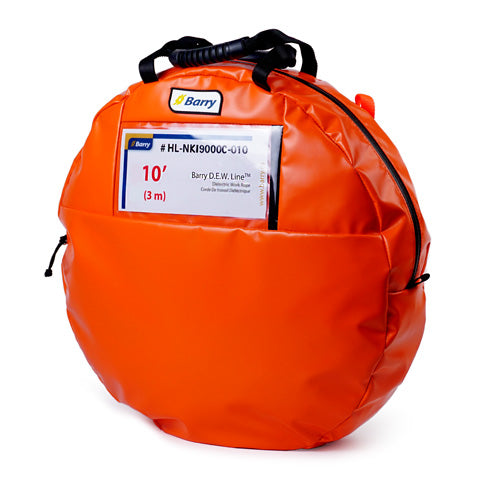

• Comes with transport bag

SPECIFICATIONS

• Working Load Limit: 7 000 lb (3 175 kg)
• Diameter: 7/8” (22 mm)
• Terminations: Closed or open spelter sockets
• Colour: Black
• Weight: 19 lb (8.6 kg) for 15’ length w/ closed spelters 24 lb (10.9 kg) for 15’ length w/ open spelters
• Standard Lengths: 5’ (1.5 m), 10’ (3.0 m), 15’ (4.6 m) (Other lengths available upon request)

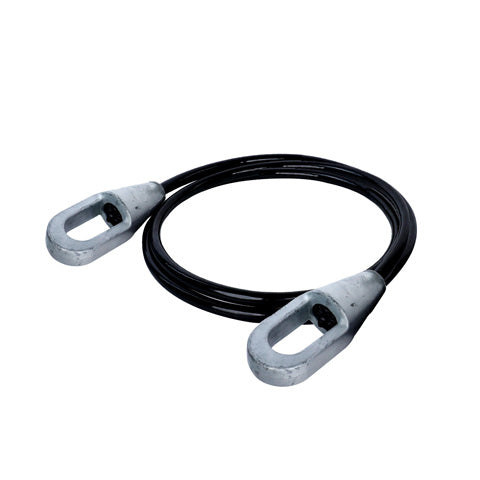

# HL-NK19000C: Closed spelter socket both ends
# HL-NK19000O: Open spelter socket both ends

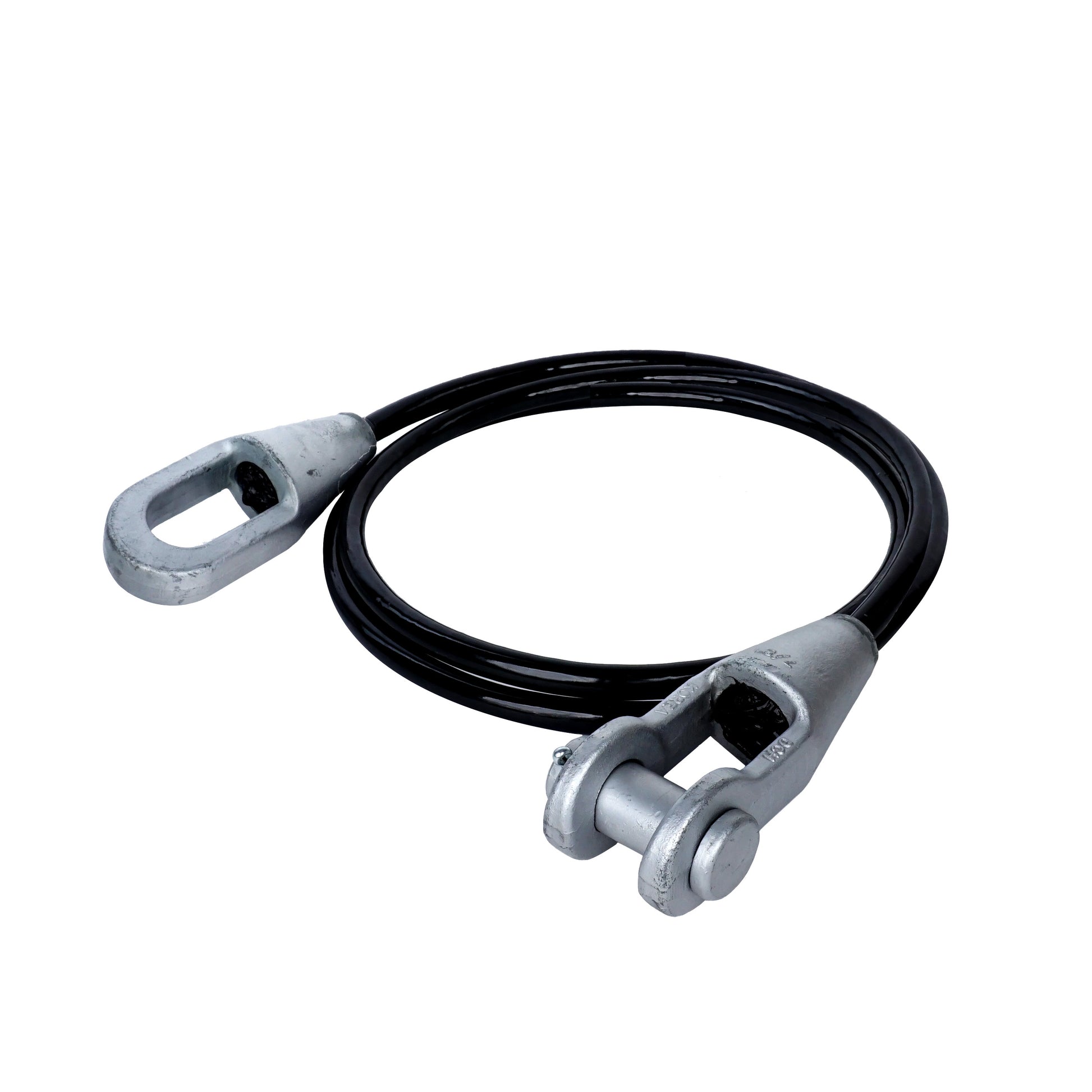

# HL-NK19000X: Closed spelter socket/open spelter socket
