Barry D.E.W. Line® Insulating HD Rope Link

Insulating rope tool which may serve as a replacement for FRP strain link sticks during temporary installations in energized fields and high voltage systems (AC or DC).

Meets or exceeds the dry or wet electrical requirements of :

• IEC 62192:2009
• ASTM F1701-12

Arc-Flash rated

• Resistant to 40 cal/cm² (category 4)

Features

• Unique insulating properties
• Cleanable and easy to maintain and test
• Exceptionally low leakage current, whether dry or wet
• Protection from high fault current
• High strength
• Low elongation
• Lightweight and low volume
• Fully sealed and hydrophobic
• Smooth surface
• High abrasion resistance
• Easy to deploy
• Excellent resistance to UV
• Sealed termination at each end, with choice of closed or open spelter sockets

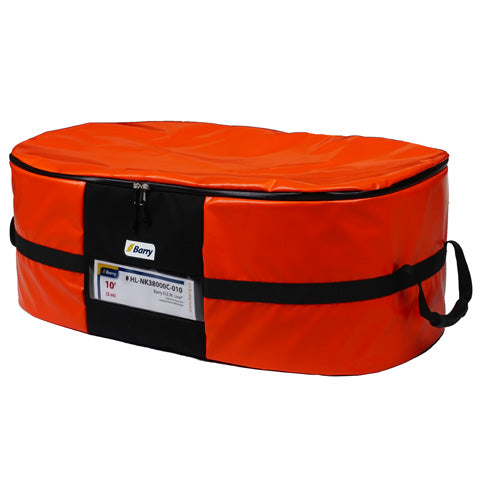

• Comes with transport bag

Specifications

• Working Load Limit: 15 000 lb (6 804 kg)
• Diameter: 1-1/4” (32 mm)
• Terminations: Closed or open spelter sockets
• Colour: Black
• Weight: 35 lb (15.9 kg) for 15’ length w/ closed spelters 50 lb (22.7 kg) for 15’ length w/ open spelters
• Standard Lengths: 10’ (3.0 m), 15’ (4.6 m), 20’ (6.1 m) (Other lengths available upon request)

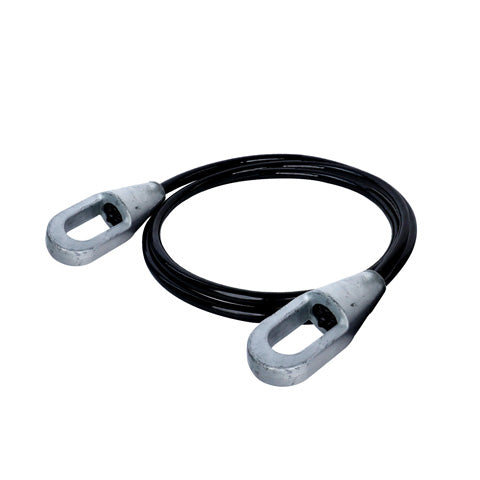

# HL-NK38000C: Closed spelter socket both ends
# HL-NK38000O: Open spelter socket both ends

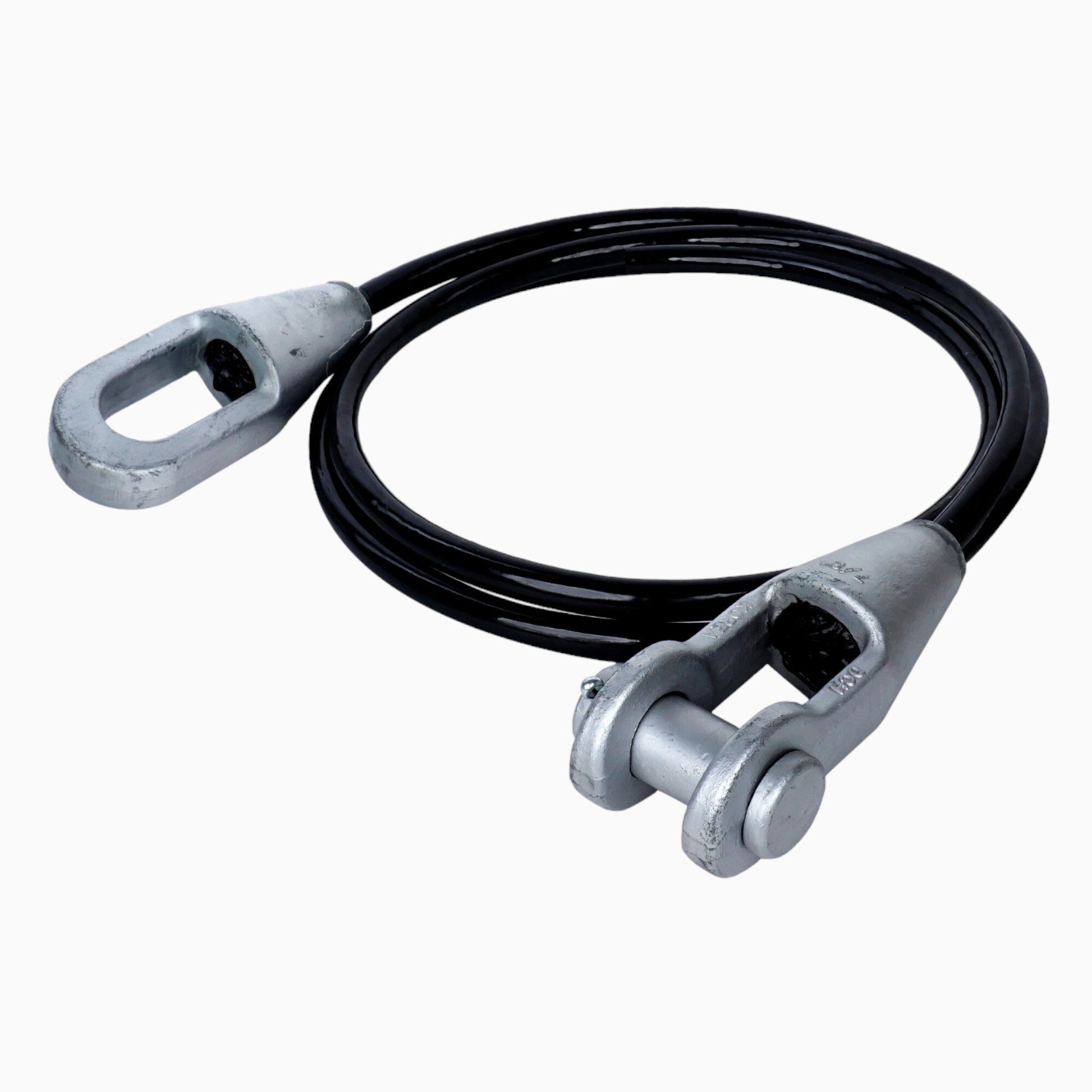

# HL-NK38000X: Closed spelter socket/open spelter socket
