Lifting Beam for Utility Distribution Transformers

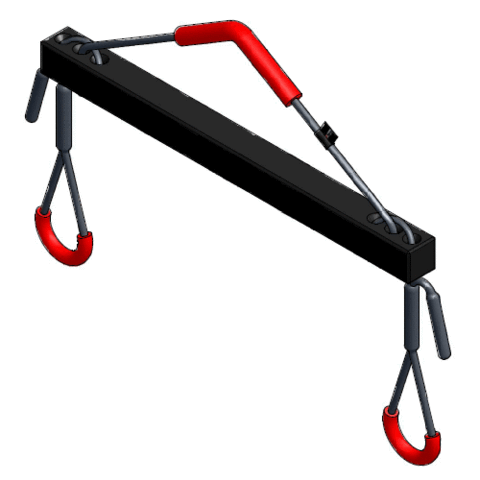

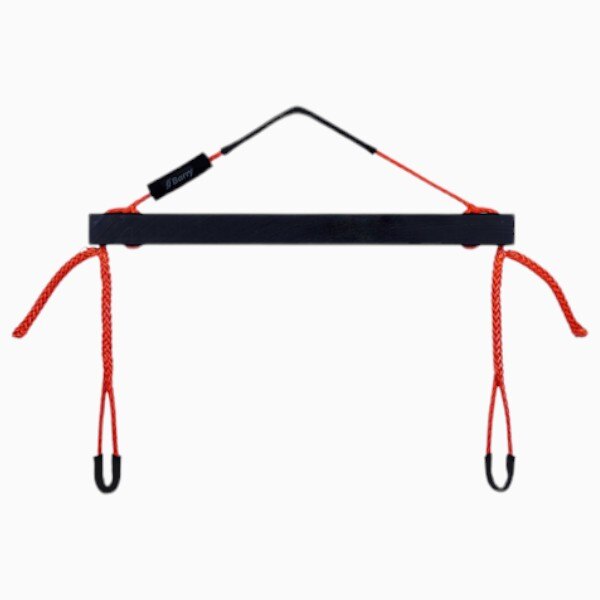

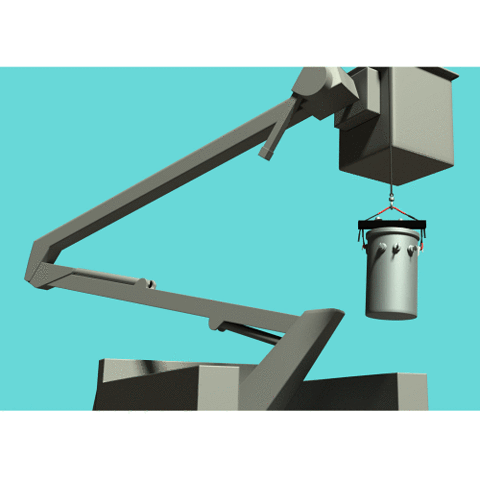

Lifting Beam designed for lifting electrical transformers, or for other loads requiring an adjustable two point lifting system.

The Lifting Beam is made of nylon material, while the rope is made of low elongation Dyneema® fiber. Height adjustment is made with the adjustable splices.

Features:

• Reinforced top attachment rope

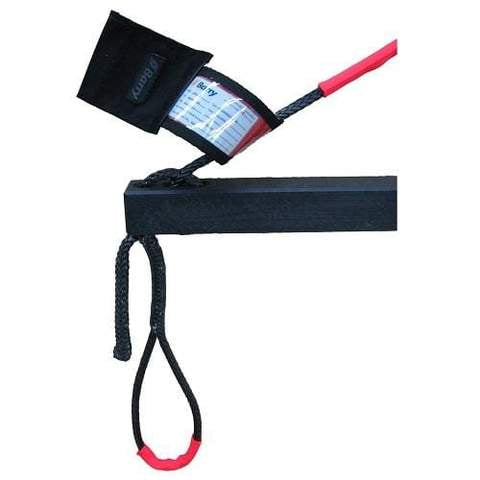

• Adjustable legs with chafe guards
• No metallic components

Specifications

• Bar Material: MOS2 Nylon
• Rope Material: 3/8" (10 mm) Dyneema® fiber
• Height: Adjustable from 16" (41 cm) to 23" (58 cm)
• Width Between Adjustable Legs: 24.5" (62 cm)
• Working Load Limit: 2 205 lb (1 000 kg
• Minimum Breaking Strength: 11 024 lb (5 000 kg)
• Weight: 5 lb (2.27 kg)
